SComputers - Api Reference

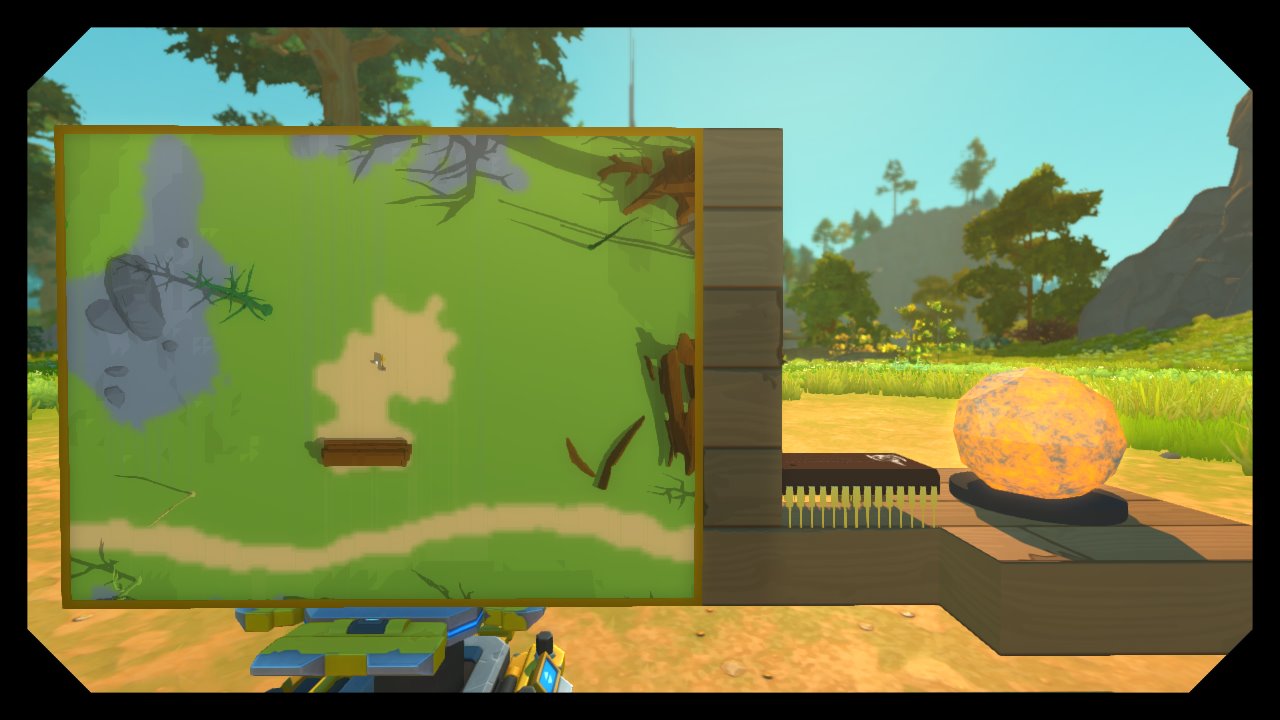

this is an addon for the minimap in SComputers!
in fact, this is a camera with an additional API.
It also supports waypoints.
survival crafting is also supported.
supports isometric rendering

it completely inherits the camera API
the camera is fixed somewhere on top, you can control it using an additional API
also, this unit can be connected using CameraTunnel
component name - camera

additional API:

camera.setMinimapHeight(height:number) - sets the height of the camera in meters
camera.getMinimapHeight():number
camera.setMinimapRotation(rotation:number, rotateSync:boolean(default: true)) - the first argument works the same way as camera.setImageRotation, and the second one indicates whether the rotation will be tied to the rotation of the minimap block (default: true)
camera.getMinimapRotation():number, boolean
camera.setIsometricRender(enable:boolean) - enables or disables isometric rendering. when the isometric render is enabled, instead of fov and height, you need to change isometric size using setIsometricSize. and it is better to set the height to 1000 (in order to see high-rise creations) fov does not affect anything in this mode
camera.isIsometricRender():boolean
camera.setIsometricSize(isometricSize:float, isometricSize:float) - changes the size of the area captured by the isometric renderer
camera.getIsometricSize():float, float
camera.setMinimapOffset(number, number) - sets the offset of the minimap relative to the minimap block
camera.getMinimapOffset():number, number
camera.getWaypoints(width, height):{{x, y, color}, ...} - searches for all labels for a specific monitor resolution. all of them get a position on a specific point of the monitor - accordingly, they are not relevant for long
camera.drawWaypoints(display, drawer:function(display, waypoint)) - draws all the waypoints on the monitor in a pre-prepared way. if you do not pass the drawer function, then the rendering will take place in the form of ordinary circles
camera.getRealRotation():number - returns the actual rotation of the minimap
camera.setWorldMode(boolean) - enables the world positioning mode in which you set the position of the minimap relative to the center of the game map using setMinimapOffset. When using this mode, it is recommended to disable rotateSync ( camera.setMinimapRotation(0, false) ) (default: false)
camera.isWorldMode():boolean - returns the value set using setWorldMode

            local styles = require("styles")

local display = getComponent("display")
display.reset()
display.setClicksAllowed(true)
display.setLight(255)
display.clear()
display.flush()
local fwidth, fheight = display.getFontWidth(), display.getFontHeight()

local camera = getComponent("camera")
local cameraStep = 512
camera.setStep(512)
camera.setDistance(2048)
camera.setMinimapOffset(0, 0)
camera.setMinimapRotation(0, true)
camera.setWorldMode(false)

local function rotateVector(x, y, angle)
    local x_new = x * math.cos(angle) - y * math.sin(angle)
    local y_new = x * math.sin(angle) + y * math.cos(angle)
    return x_new, y_new
end

local zoneSize = 64
local offsetX, offsetY = 0, 0
local isometric
local waypoints = true
local function setIsometric(_isometric)
    isometric = _isometric
    camera.setIsometricRender(isometric)
    if isometric then
        camera.setMinimapHeight(1000)
        camera.setIsometricSize(zoneSize * (display.getWidth() / display.getHeight()), zoneSize)
    else
        local fov = math.rad(60)
        camera.setNonSquareFov(fov * (display.getWidth() / display.getHeight()), fov)
        camera.setMinimapHeight(zoneSize)
    end
end
setIsometric(true)

local function setMinimapOffset(_offsetX, _offsetY)
    offsetX = _offsetX
    offsetY = _offsetY
    camera.setMinimapOffset(offsetX, offsetY)
end

local renderSettings = {
    lampLighting = false,
    shadows = false,
    smoothingTerrain = false,
    simpleShadows = false,
    sun = false,
    fog = false,
    reduceAccuracy = false
}

local gui = require("gui").new(display)
local pressedPosX, pressedPosY
local scene = gui:createScene(function ()
    camera.drawAdvanced(display, renderSettings)
    if waypoints then
        camera.drawWaypoints(display)
    end
end, function (_, click)
    if click[3] == "pressed" then
        pressedPosX, pressedPosY = click[1], click[2]
    elseif click[3] == "drag" then
        if pressedPosX then
            local perPixel = zoneSize / display.getHeight()
            local lOffsetX, lOffsetY = rotateVector(((click[2] - pressedPosY) * perPixel), ((click[1] - pressedPosX) * perPixel), -camera.getRealRotation())
            offsetX = offsetX + lOffsetX
            offsetY = offsetY + lOffsetY
            pressedPosX, pressedPosY = click[1], click[2]
            camera.setMinimapOffset(offsetX, offsetY)
        end
    end
end)
scene:setAlwaysRedraw(true)

local isometricSwitch = scene:createButton(2, 2, 16, fheight + 2, true, nil, "444444", "ffffff", "ee2222", "ffffff")
isometricSwitch.state = isometric
isometricSwitch:setCustomStyle(styles.switch)
isometricSwitch:attachCallback(function (_, state)
    setIsometric(state)
end)

local isometricSwitchText = scene:createText(nil, nil, "isometric")
isometricSwitchText.sizeY = fheight
isometricSwitchText:setCenterRight(isometricSwitch, 3)

local waypointsSwitch = scene:createButton(nil, nil, 16, fheight + 2, true, nil, "444444", "ffffff", "ee2222", "ffffff")
waypointsSwitch:setDown(isometricSwitch, 3)
waypointsSwitch.state = waypoints
waypointsSwitch:setCustomStyle(styles.switch)
waypointsSwitch:attachCallback(function (_, state)
    waypoints = state
end)

local waypointsSwitchText = scene:createText(nil, nil, "waypoints")
waypointsSwitchText.sizeY = fheight
waypointsSwitchText:setCenterRight(waypointsSwitch, 3)

local worldSwitch = scene:createButton(nil, nil, 16, fheight + 2, true, nil, "444444", "ffffff", "ee2222", "ffffff")
worldSwitch:setDown(waypointsSwitch, 3)
worldSwitch.state = false
worldSwitch:setCustomStyle(styles.switch)
worldSwitch:attachCallback(function (_, state)
    setMinimapOffset(0, 0)
    camera.setMinimapRotation(0, not state)
    camera.setWorldMode(state)
end)

local worldSwitchText = scene:createText(nil, nil, "world mode")
worldSwitchText.sizeY = fheight
worldSwitchText:setCenterRight(worldSwitch, 3)

local increaseScale = scene:createButton(nil, nil, 8, 8, false, "+")
increaseScale:setDown(worldSwitch, 3)
increaseScale:attachCallback(function (_, state)
    if state then
        zoneSize = zoneSize + 16
        if zoneSize > 1024 then
            zoneSize = 1024
        else
            changeScale()
        end
    end
end)

local reduceScale = scene:createButton(nil, nil, 8, 8, false, "-")
reduceScale:setRight(increaseScale, 2)
reduceScale:attachCallback(function (_, state)
    if state then
        zoneSize = zoneSize - 16
        if zoneSize < 16 then
            zoneSize = 16
        else
            changeScale()
        end
    end
end)

local zoneText = scene:createText()
zoneText.sizeY = fheight
zoneText:setCenterRight(reduceScale, 2)

local increaseStep = scene:createButton(nil, nil, 8, 8, false, "+")
increaseStep:setDown(increaseScale, 3)
increaseStep:attachCallback(function (_, state)
    if state then
        cameraStep = cameraStep + 128
        if cameraStep > 2048 then
            cameraStep = 2048
        else
            changeSpeed()
        end
    end
end)

local reduceStep = scene:createButton(nil, nil, 8, 8, false, "-")
reduceStep:setRight(increaseStep, 2)
reduceStep:attachCallback(function (_, state)
    if state then
        cameraStep = cameraStep - 128
        if cameraStep < 128 then
            cameraStep = 128
        else
            changeSpeed()
        end
    end
end)

local scaleText = scene:createText()
scaleText.sizeY = fheight
scaleText:setCenterRight(reduceStep, 2)

local resetOffset = scene:createButton(nil, nil, nil, 8, false, "RESET OFFSET")
resetOffset:setDown(increaseStep, 2)
resetOffset:attachCallback(function (_, state)
    if state then
        setMinimapOffset(0, 0)
    end
end)

function changeSpeed()
    scaleText:clear()
    scaleText:setText("speed: " .. cameraStep)
    camera.setStep(cameraStep)
end
changeSpeed()

function changeScale()
    zoneText:clear()
    zoneText:setText("zone: " .. zoneSize)
    setIsometric(isometric)
end
changeScale()

function callback_loop()
    if _endtick then
        display.clear()
        display.forceFlush()
        return
    end

    gui:tick()
    if gui:needFlush() then
        gui:draw()
        display.flush()
    end
end
